MaestroNano(TM) Micro-volume Spectrophotometer

GMN-917
Regular price
$5,154.00 USD
Sale price
$5,154.00 USD
Regular price
$6,063.00 USD
Sold out
Unit price
per
Shipping calculated at checkout.

MaestroNano is a spectrophotometer for bio-chemical research only. The main function is micro volume concentration quantification, for nucleic acid including double-stranded nucleic acid (dsDNA), single-stranded nucleic acid (ssDNA), and ribonucleic acid (RNA), or protein solution.

To satisfy most users’ requirements for concentration measurement, MaestroNano defines a most reliable measurement range of concentration of 2-2000 ng/μL, and successfully resists the interferences of ambient light to achieve more accurate measurement results.

After dispensing sample on the surface of the central area of the quartz glass, users can select sample type and begin to measure.

Focus on nucleic acid and protein
230nm/260nm/280nm/320nm

Convenient
2 μl sample only, easy measurement in less than 5 seconds

Accurate
High reproducibility and repeatability

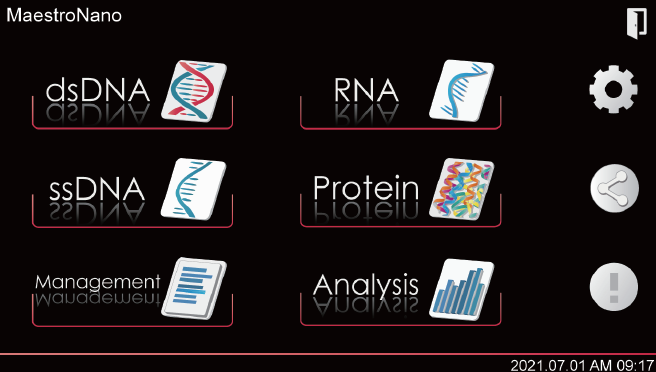

User-friendly interface
Touch screen, USB, Wi-Fi, ethernet and QR code

All-in-one
Embedded computer and thermo printer

Low-cost operation
No plates or other consumables

Best concentration range
2 ng/µL~2,000 ng/µL (dsDNA) without dilution

Reliable, repeatable, and reproducible concentration
MaestroNano does not intend to change light path-length during measurement to reduce frequency of calibration. Instead, MaestroNano develops and offers an in-house mathematical algorithm to help users acquire more reliable, repeatable, and reproducible bio-chemical solution concentrations.

Non-optical-fiber design
With MaestroGen’s new technology, non-optical-design, MaestroNano can offer the high reliability in accuracy and prevent from the unavoidable issue caused by the attenuation of light intensity in the optical path when the device equipped with fiber-optic components as consumables.

High precision in the positioning of optical path

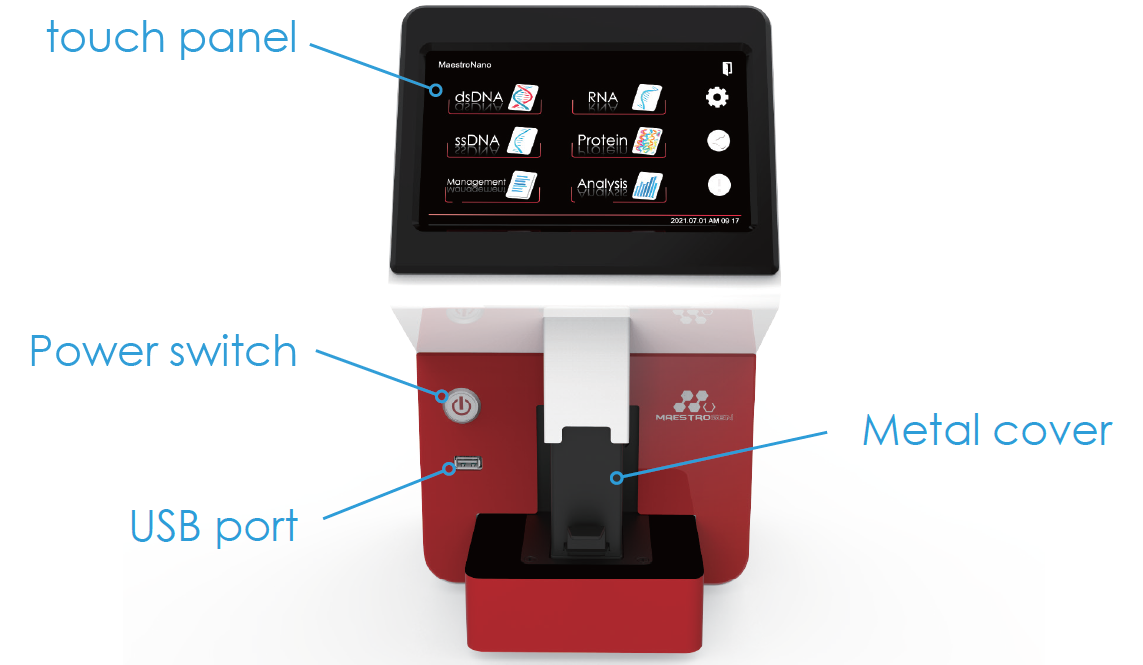

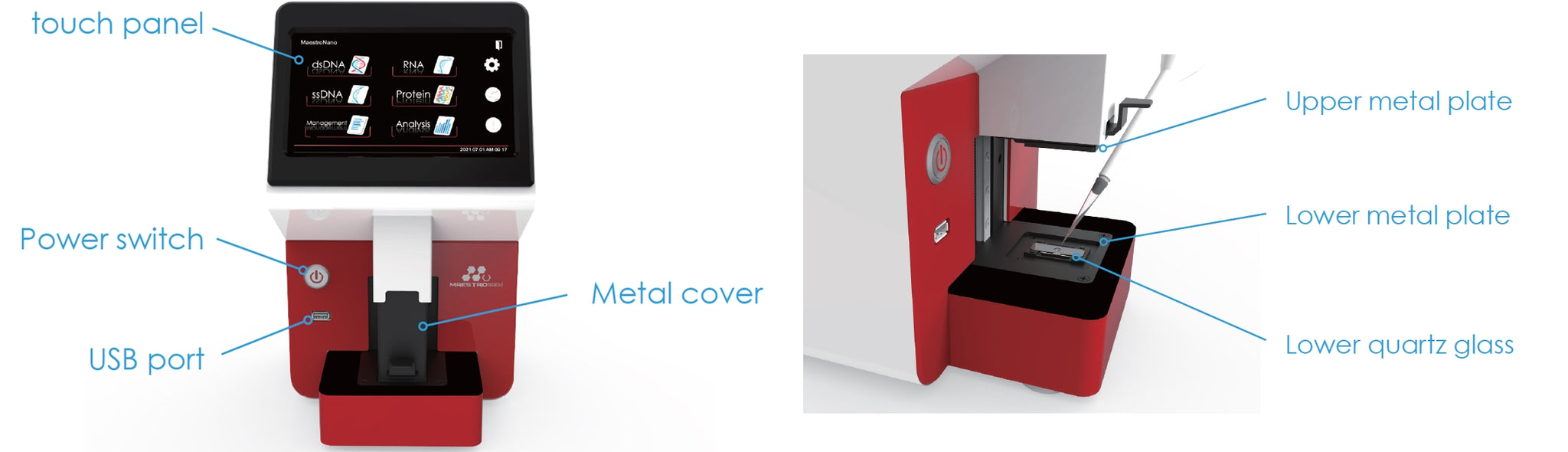

The height of optical path-length is precisely fixed in 0.5mm by fixed pin. Compared to other micro volume spectrophotometers, which need to be constantly calibrated to maintain the precision and to make the optical path length into position, MaestroNano works with a metal cover that can “straightly” go up and down in y-axial via a reliable slider and that way contributes to the rigid positioning of the optical path length in y-axis and always to be perpendicular to the bottom quartz glass.

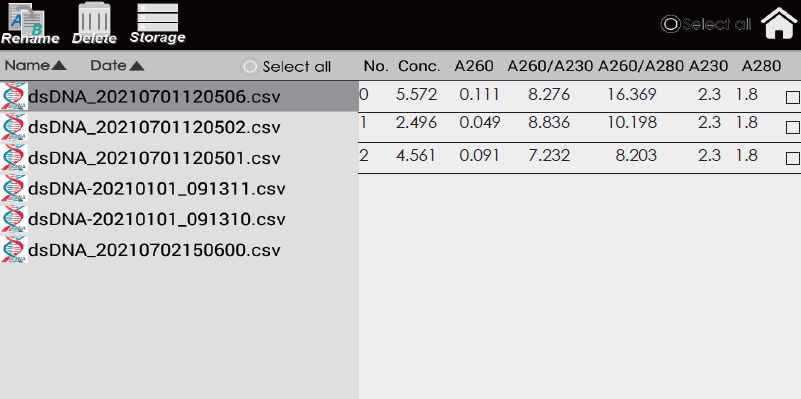

Accessible measurement results
The measurement results can be accessible via the embedded touch panel, thermal printer, USB storage as well as Wi-Fi transfer.

Adjustable light intensity contributes to the stable performance
In order to prevent from the impacts caused by the derivations in various environmental conditions, such as different ranges of temperature, humidity, latitude, etc., and to make sure the measurement for the same sample should be leaded to the same results, the adjustable light source provides with the adjustable voltage in intensity. With this new technology, user just needs two micro-liter of ddH2O as the standard volume, and gets back to the stable performance again via the built-in calibration mode.

Compared to other spectrophotometers
There are some kinds of micro volume spectrophotometer for DNA, RNA and protein right now. But MaestroNano is definitely the most special one. Most spectrophotometers use whole wavelength spectrum from 200nm to 900nm, need calibration by experts time to time, and install software in another stand-alone computer to operate. MaestroNano provides a much better and more economical solution for most functions. By using the specific useful wavelengths (230/260/280/320nm) and automatic calibration, the embedding operating system offers an outstanding performance of accuracy and a much lower price compared to other spectrophotometers. Also, MaestroNano is a “non-optical-fiber” system, which can contribute to the longer product life-time compared to others embedded with optical fiber as consumables.

Cat. No.

MN-917

Measurement Sample Size

2 μL

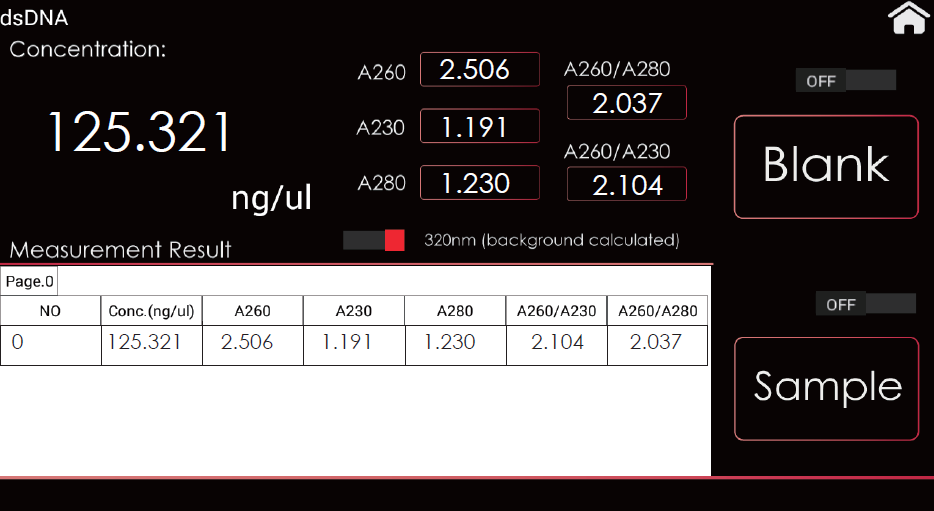

Measurement Data Output

1. OD230 nm, OD260 nm, OD280 nm, OD320 nm

2. Sample Concentration (ng/μL)

3. OD260 nm/OD230 nm, OD260 nm/OD280 nm

Light Propagation Material

Quartz Glass and Pinhole

Absorbance Range (10mm)

0.04~40

Minimum Concentration

2 ng/μL (dsDNA)

Maximum Concentration

2000 ng/μL (dsDNA)

Path Length

~0.5 mm

Measurement Time

< 5 seconds at conc. >25 ng/μL

Operation Voltage

12 VDC, 2.5 A

Adaptor Input

100~240 VAC, 50~60 Hz, 1 A

Operation Power Consumption

Stand by: 5 W

General: 10 W

Thermal printer: 15~24 W

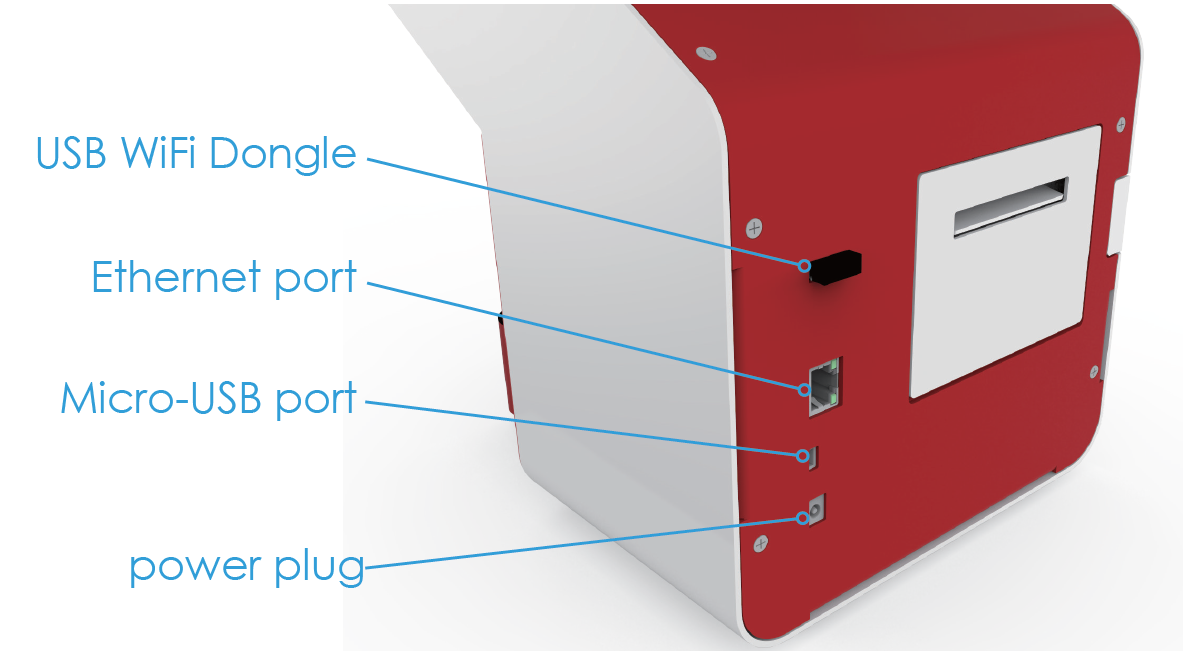

Data Connection Interface

OTG USB (connected to PC)

Wi-Fi (USB Dongle)

Ethernet (RJ-45)

USB Port x 2

Data Output Interface

Touch screen

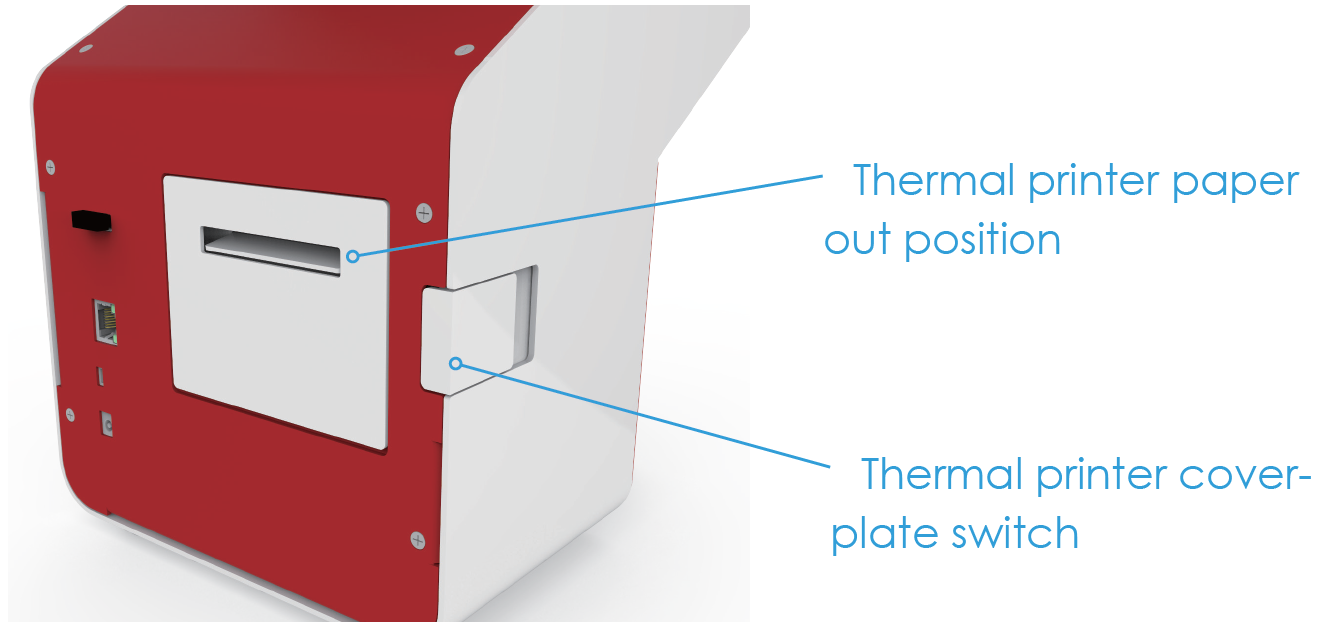

Thermal Printer

USB Storage

Web Server Storage

USB Port Operation Voltage

5 VDC, 0.5 A

Printer Paper Width/Print Width

58 mm/48 mm

Touchscreen Resolution

7 inches, WxH 1024x600 dots matrix

Operation System

Android Version 4.4.3

Internal Storage

32 GB

Maintenance

Auto Diagnosis

Calibration Mode

Fixed Path-length

System Structure

Embedded System, No PC

Light Source

Xenon Flash Lamp

Size

WxDxH  26x26x22 cm

Weight

3.5 kg (not including adapter)
