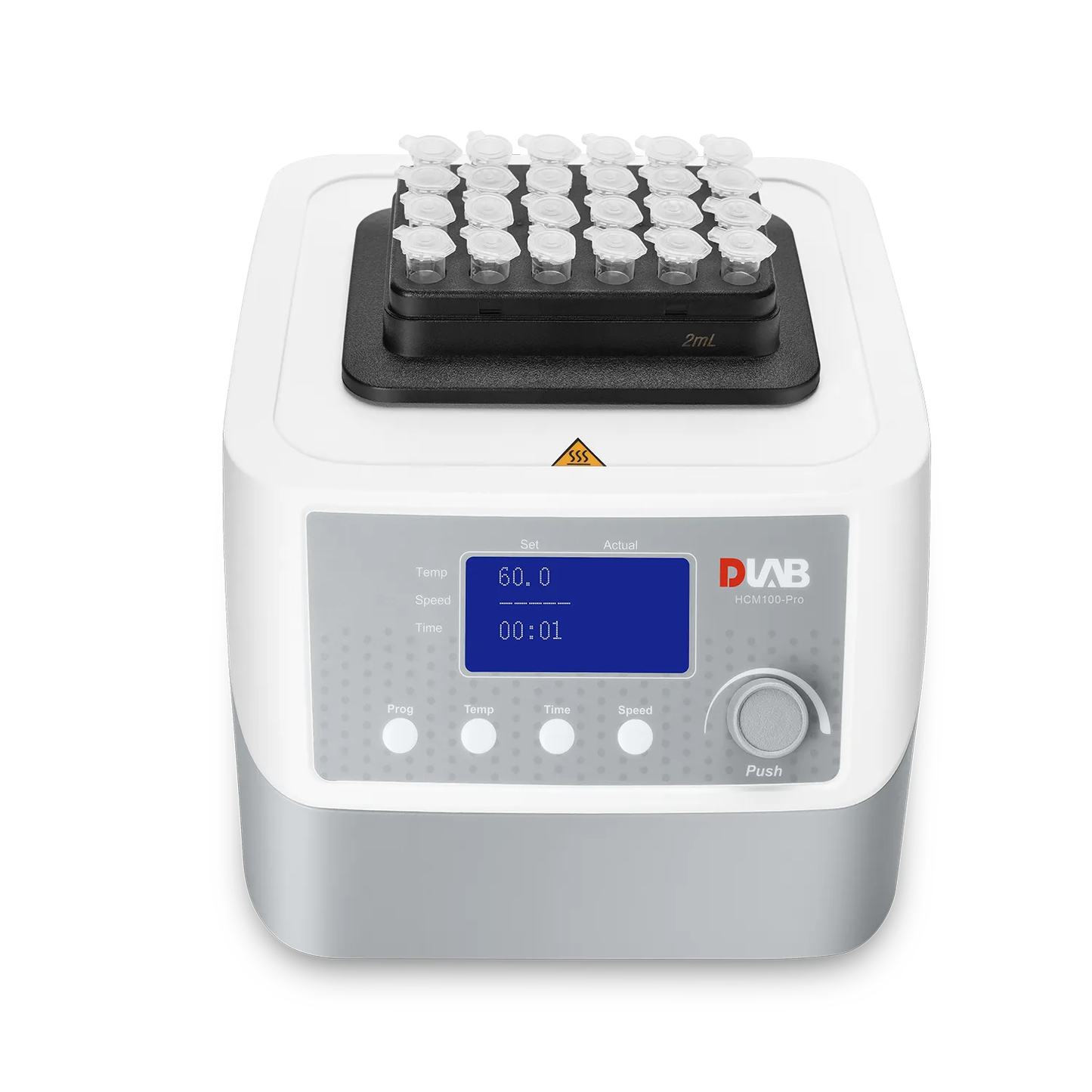

DLAB HCM100-Pro Thermo Mix

SKU: HCM100-Pro

• Fully programmable Mixing
• Precise temperature control for heating and cooling
• Real-time display of speed, temperature and time
• Excellent mixing (200-1500rpm)
• Quick interchange of blocks without tools and automatic block recognition via magnetic attachment between block and base
• Compatible with all popular tubes
• Block equipped with a lid for heat preservation and evaporation buildup
• Temperature self-calibration
• One default heating block is included -you specify!

Adaptors and Accessories

See all heating blocks and accessories -see the pictures as well as this attached description on adaptors and accessories, download here.

Specifications

Parameter	Value
Temperature range	Below room temp 15-100℃
Temperature Setting range	0-100℃
Temperature control accuracy@20-45	±0.5℃
Temperature uniformity@20-45	±0.5℃
Time setting range	0min-99h30min
Max Heating speed	5.5℃/min
Max Cooling speed	5℃/min（100℃-room temp） 0.5℃/min below room temp）
Functions	Heating/cooling/mixing
Mixing speed	200-1500rmp
Mixing orbit	3mm
Program memory	9
Overheating protection	150℃
Power	200W
Display	TFT
Voltage/Frequency	110/220V，50/60Hz
Dimension[WxDxH]	200x235x120mm
Weight	7.3kg
Permissible ambient temperature	10-40℃
Permissible ambient humidity	<80% RH
