Genequip™ Smart Stirrer Mixer

SKU: SMS-200

Product Information

The Genequip™ Smart Stirrer Mixer is a laboratory device designed for liquid mixing, particularly for stirring or heating and stirring low-viscosity liquids or solid-liquid mixtures. Its primary function relies on the principle of magnetic repulsion and attraction to drive a magnetic stir bar placed within the container to create a circular motion, effectively stirring the liquid. Equipped with a temperature control system, it can precisely maintain and adjust the sample temperature to meet the specific experimental requirements and facilitate optimal mixing of liquids according to experimental conditions.



---

Product Features

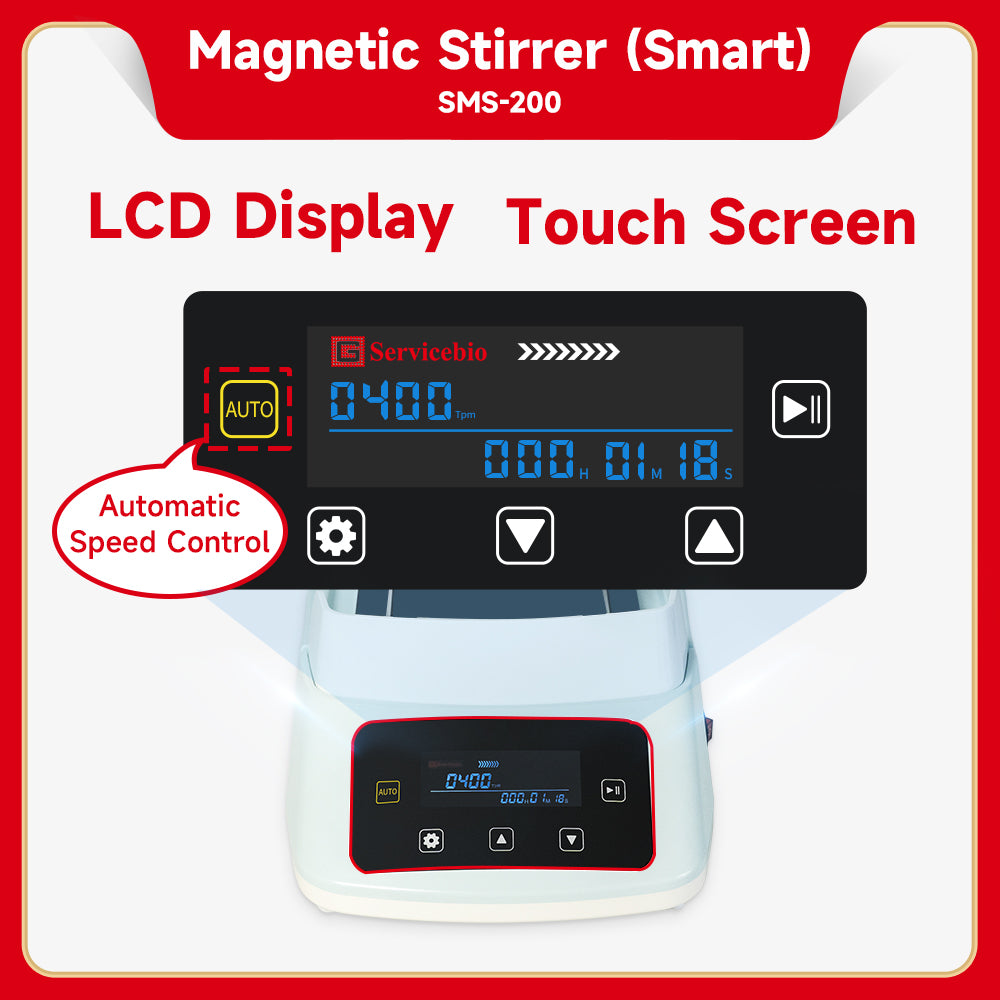

1. One-click startup, adjusting to suitable operating speeds automatically.

2. The instrument utilizes a new magnet tracking feature to ensure accurate and consistent mixing speeds.

3. Intelligent anti-skipping during operation. When the skipping occurs during operation, the device will automatically stop turning, search for the probe again, and automatically reduce the rotating speed after sensing the skipping.

4. Controlled by chip and PCB board, the speed control is accurate.

---

Products Parameters

Product Name	Classic Smart Model
Cat. No.	SMS-200
Work Plate Size	140mm×140mm
Heating And Stirring Function	-
Intelligent Speeding Function	Yes
Work Plate Material	Plastic Plate
Speed Range	100-2000rpm
Heating Temperature Range	-
Temperature Control Accuracy	-
External Temperature Sensor	-
Overheating Protection	-
Timing Range	1-999h60min
Number of Stirring Points	1

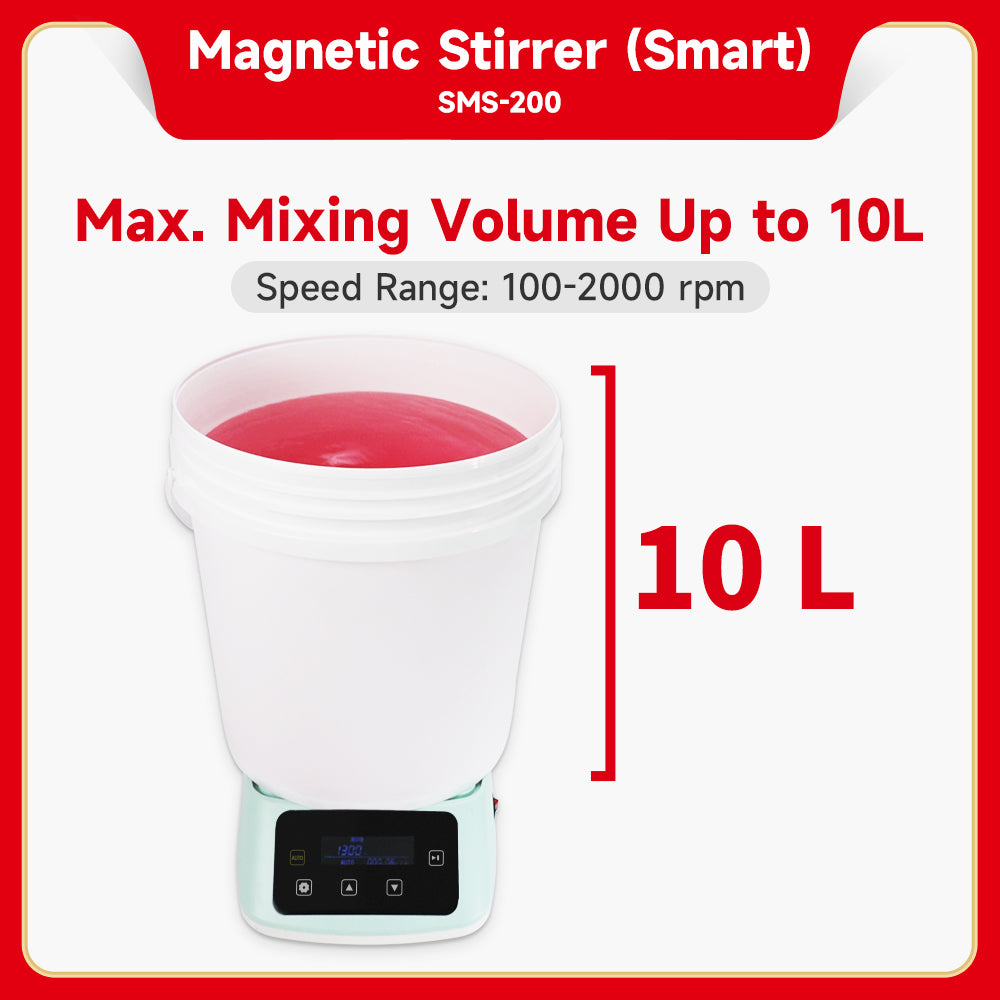

Maximum Stirring Capacity	10 L
Maximum Size of Stir Bar	50 mm
Input Voltage	220V 50/60Hz
Output Power	10W
Thermal Output Power	-
Dimension	290*195*68mm
Net Weight	0.79kg
Motor Type	Brushless DC Motor
Speed Control Accuracy	100rpm
Residual Temperature Warning	-
Working Temperature And Humidity	5-40℃, 80%rh
