DLAB D1524R High-speed Refrigerated Micro Centrifuge

SKU: D1524R

D1524R High-speed Refrigerated Micro Centrifuge

• Electronic Magnetic door locking system - the lid can be closed with one hand soft touch
• Precooling, the compressor automatically starts cooling as long as the set temperature is lower than the ambient temperature
• Sound indicator at the end of running.
• Temperature range -20℃ to 40℃
• Short pre-cooling time of only 7minutes from room temperature to 4℃
• Up to 9 program storage capacity
• 3-layer sealed rotors ensure safe centifugation

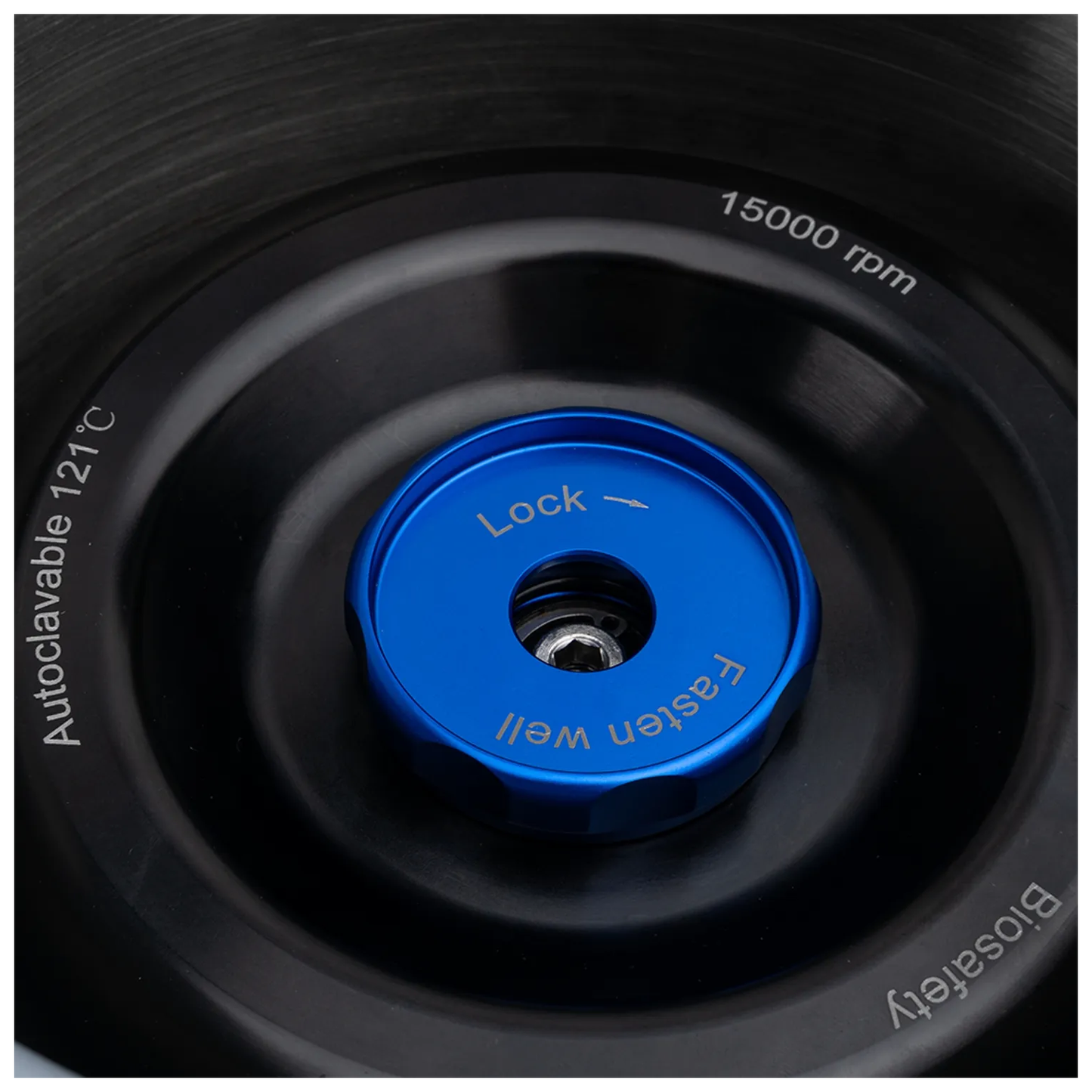

• High-strength aluminum alloy rotor can be fully autoclavable at 121℃
• Rotor imbalance detection alarm
• Adjustable acceleration/deceleration at 9 levels allows gentle braking at low speed for better separation
• Five rotors with 0.2mL, 0.5mL, 1.5mL, 2mL and 5mL centrifuge tubes/ PCR tubes capacity
• An external condensation tank prevents water accumulation within centrifuge chamber

Specifications

Parameter	Value
Speed range	15,000rpm (200-15,000rpm) in 100rpm increments.
Max. RCF	21,380×g, step: 10×g
Rotor capacity	1.5/2mL ×24 | 0.2/0.5mL ×36 | PCR-8 strips×4 | 5mL ×12 | 5mL×18
Run time	30s-99 min; HOLD (continuous running)
Acceleration/Braking time	25s↑25s↓
Temperature setting range	-20℃- 40℃
Display	LCD
Power	500W
Voltage/Frequency	Single-phase，100-120V/200-240V, 50Hz/60Hz
Noise level	≤56dB
Motor type	Brushless DC motor
Dimensions [WxDxH]	332×553×283mm
Weight	30kg
Safety performance	Dual door lock, over-speed detection, over-temperature detection with Internal diagnosis system.
Other functions	Rotation speed/RCF switchover, inching operation, running process indicator, sound alert. Adjustable acceleration/deceleration at 9 levels program storage capacity.

Accessories

Optional rotors and tube adaptors are available, please ask us.

Tubes in each centrifugation run must be balanced. Failure to do so may result in damage to the equipment and injury to personnel.
