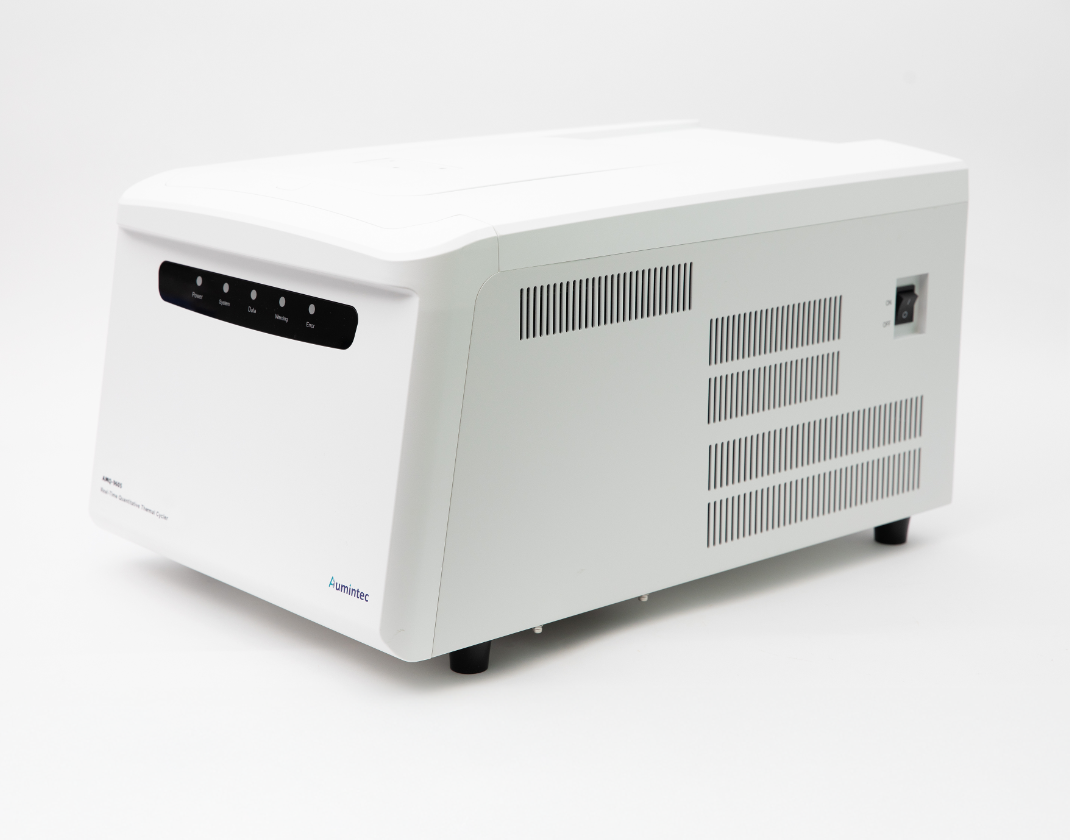

Real-time qPCR Instrument System-96well, 5 Channels

SKU: AMQ-9605

AMQ-9605

Key Features & Specifications

Advanced Optical System With Fiber Optic Technology

• 5 Fluorescence Detection Channels
• Detects up to 5 targets per Reaction, Reducing Reagent Use and Sample Volume
• Enables Multiplexing; Detecting up to 5 Different Targets per Well, Reducing Reagent Consumption and Increasing Throughput

Precision Thermal Control With Six Independent Temperature Zones

• Gradient PCR Capability
• Supports Annealing Temperature Optimization across Different Wells
• Ideal for Assay Development and Optimization
• Six Independently Controlled Temperature Zones
• Allows Multiple Thermal Profiles within a Single Run
• Enables Simultaneous Processing of Different Reaction Conditions
• Fast and Uniform Heating and Cooling
• Precise Peltier Heating and Cooling System for Rapid Temperature Transitions
• Minimizes Thermal Variation Between Wells, Improving Amplification Consistency


Intelligent Software With Multiple Analysis Modes

• Multiplex Gene Expression Profiling
• Pathogen Detection and SNP Analysis
• Automated Baseline and Threshold Adjustments
• Enhances Data Accuracy and Reduces Manual Processing Errors
• Comprehensive Data Export and Integration
• Exports Results in Multiple Formats

Specification Table

PRODUCT DESCRIPTION	PCR Instrument
SAMPLE CAPACITY	96-Well, 0.2mL Plate
COMPATIBLE PLATES AND TUBES	96-Well Plates, 8-Well Strip Tubes, Single Tube (Transparent)
REACTION VOLUME	10-120 µL
EXCITATION SOURCE	Halogen Lamp
EXCITATION RANGE	475-670 nm
DETECTION METHOD	CMOS Camera
DETECTION RANGE	515-680 nm
DETECTION CHANNELS	5
TEMPERATURE RANGE	4-100°C
AVERAGE HEATING AND COOLING RATE	3°C/sec and 3°C/sec
MAXIMUM HEATING AND COOLING RATE	5°C/sec and 4°C/sec
TEMPERATURE UNIFORMITY	±0.25°C
TEMPERATURE ACCURACY	±0.15°C
GRADIENT	6 Independent Temperature Zones
DYNAMIC RANGE	10 Logs of Linear Dynamic Range
OUTER DIMENSIONS (W X D X H)	60cm x 39cm x 32cm
WEIGHT	23kg
