Genequip™ Microplate Centrifuge

SKU: SMP-2

Product Description

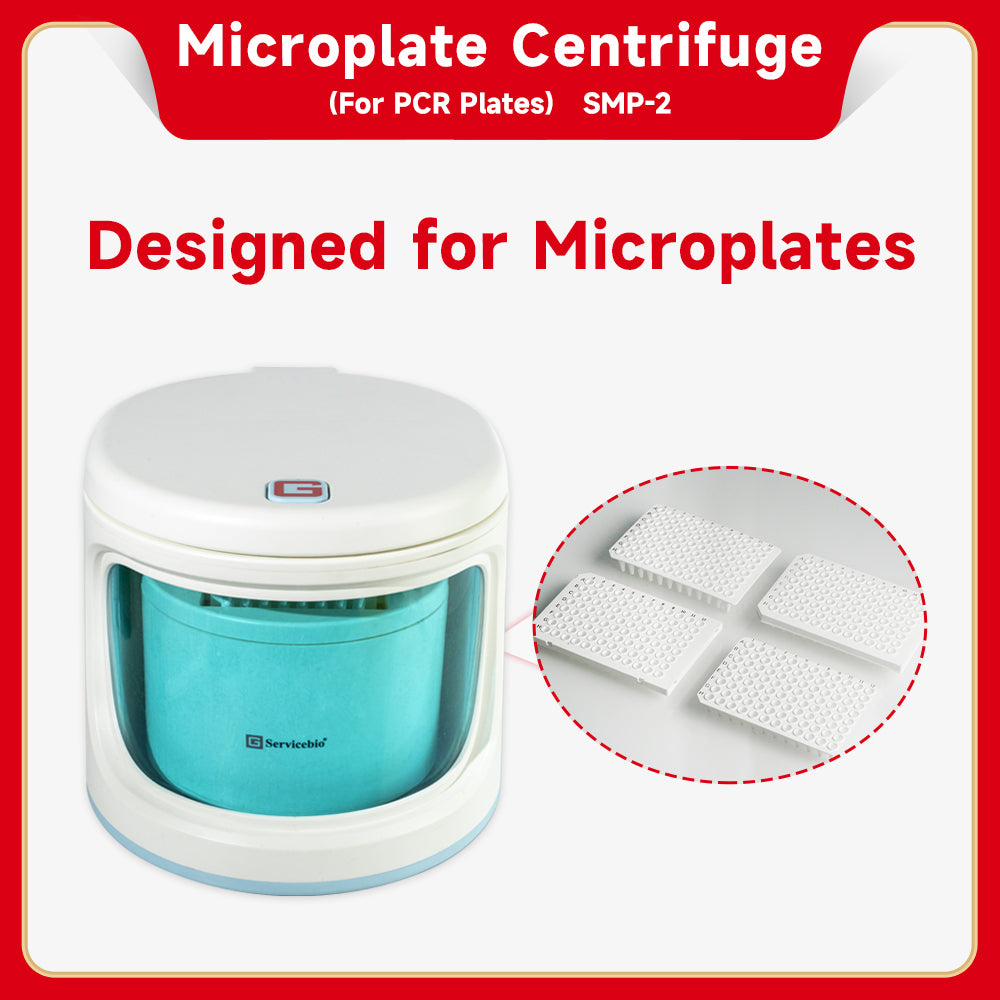

Microplate centrifuge is a transient centrifuge specially designed for 96-well plates. The centrifuge is convenient for separating the droplets hanging on the wall. The microplates are vertically loaded into the top slot of the centrifuge, and the liquid is kept at the bottom of the microplates under the action of surface tension, so there is no need to worry about leakage. Close the top cover of the centrifuge, and the rotor will be accelerated to 2200 rpm instantaneously.

---

Product Features

1. Can take 2 microplates at the same time without manual rotation.

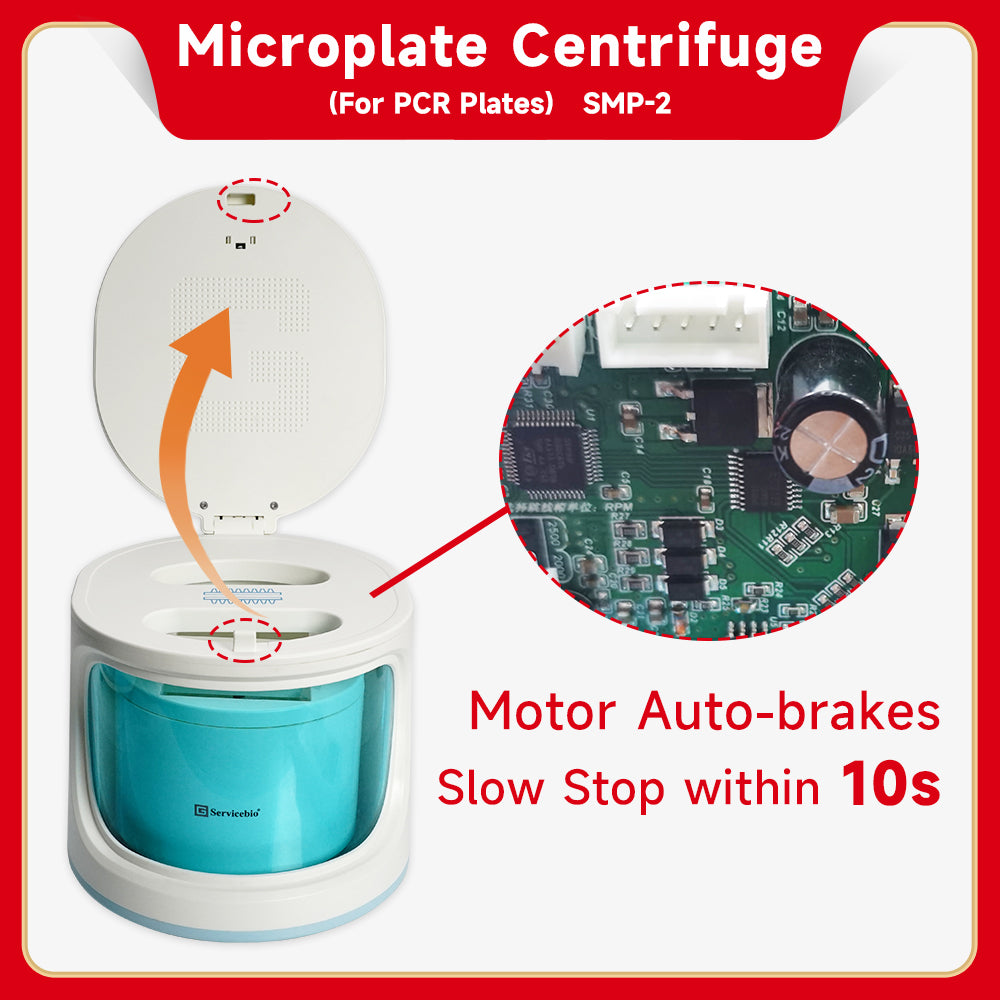

2. The motor actively brakes to achieve a slow stop within 10s.

3. Inductive switch, stop when the door is opened. Can be operated with one hand

4. Bottom plate counterweight, lower center of gravity, no vibration when starting, more stable operation.

---

Parameters
Volume	2 pieces of96-wellPCR plate
Max Relative Centrifugal Force	550 g
Motor	DC brushless
Rotor	Vertical fix
Rotating Speed	2200 RPM
Voltage	AC100～240V, 50～60HZ
Noise	≤55 dB
Deceleration Time	≤10s(2200-0RPM)
Acceleration Time	≤10s(0-2200RPM)
Power	24W
Open The Cover And Stop	Support
Dimensions	256×224×203 mm
Weight	3.6 kg

 Tubes in each centrifugation run must be balanced. Failure to do so may result in damage to the equipment and injury to personnel.
