DLAB D3024 High Speed Micro Centrifuge

SKU: D3024

D3024 High Speed Micro Centrifuge

• fast cooling of the rotor and low energy consumption
• 3-layer sealed rotors ensure safe centrifugation
• Brushless motor drive, maintenance free
• Safety features include door interlock; excessive speed and temperature detection; automatic self-diagnostics

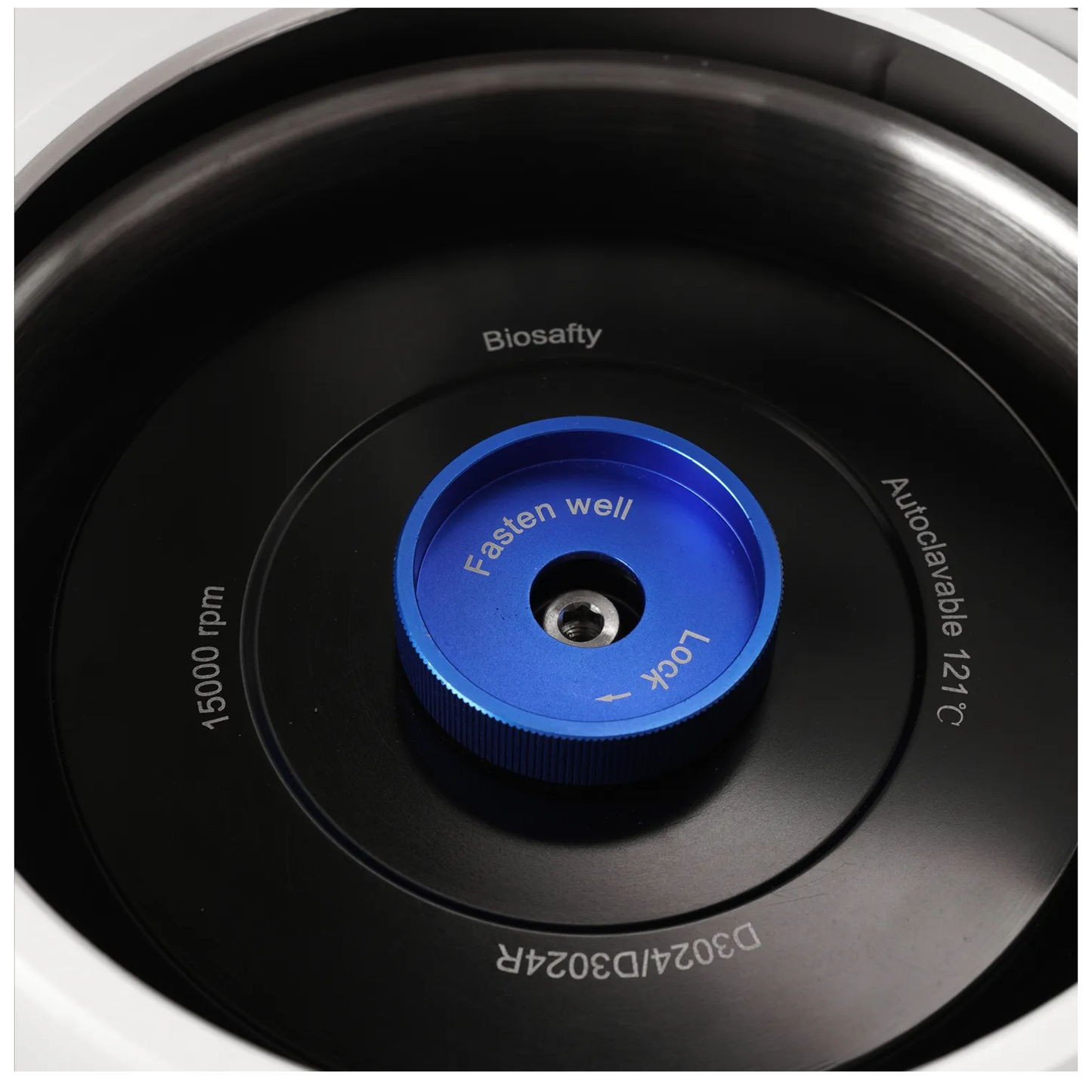

• Outstanding aluminum alloy rotors fully autoclavable at 121℃ temperature and high pressure disinfection
• Five rotors are optional complete with 24 places 1.5/2.0mL tubes,5.0mL, 0.2mL and 0.5mL tubes with adapter

Specifications

Parameter	Value
Speed range	15000rpm(200-15000rpm), increment:10rpm
Max. RCF	21380×g, increment:10×g
Speed accuracy	±20 rpm
Rotor capacity	1.5/2mL ×24 | 0.2/0.5mL ×36 | PCR-8 strips×4 | 5mL ×12 | 5mL×18
Run time	30sec-99min/Continuous
Acceleration/Braking time	25s↑25s↓
Display	LCD
Power	200W
Voltage/Frequency	Single-phase, AC200V-400V, 50Hz/60Hz, 5A,AC100V-120V, 50Hz/60Hz, 8A
Noise level	≤64dB
Motor type	Brushless DC motor
Dimensions [WxDxH]	364×280×266mm
Weight	12kg
Safety performance	Dual door interlock, Over-speed detection, Automatic internal diagnosis
Other functions	Speed/RCF switch; Short-time run function; sound-alert function

Accessories

Optional rotors are available, please ask us.

Tubes in each centrifugation run must be balanced. Failure to do so may result in damage to the equipment and injury to personnel.
