GB-Mini™ Horizontal Electrophoresis Apparatus System

SKU: BN-SPAT

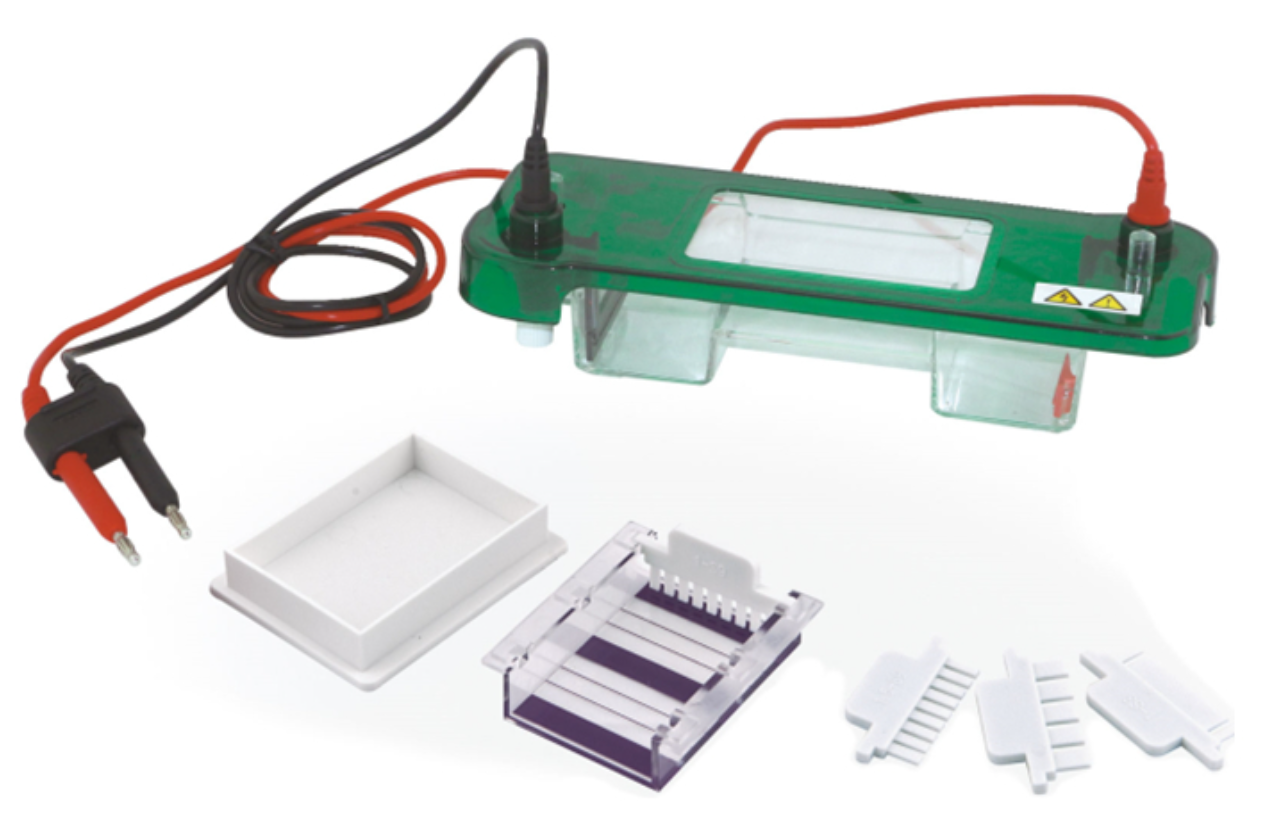

GB-Mini™ Horizontal Electrophoresis Apparatus System is for running nucleic acid samples, such as DNA samples by electrophoresis. This system offers gel trays, comb and gel cell/tank for running buffers/gel tray, with attached electrical leads.

Technical specifications

Gel Size(W×L): 48×75mm
Sample volume: 3, 5, 9.
No. of Samples: 3~18
Buffer Volume: ~150ml.
Dimension(L×W×H): 250×90×50(mm)
Net weight: 0.4(kg)

Features:
• Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.
• Unfolded electrodes make repair and parts replacement easy and quick.
• With the sample background color design on the tray, convenient to adding the sample.
• The transparent top lid effectively prevents liquid in the cell from volatilizing and avoids electricity leakage.
• Auto-switch-off when the lid is removed.

The product includes :

Body tank with electrode / 1
Gel tray (W×L)：48×75(mm) 1
Gel box (W×L)：48×75(mm) 1
Combs
1.0mm thickness,3-wells 2
1.5mm thickness,3-wells 2
1.0mm thickness,5-wells 2
1.5mm thickness,5-wells 2
1.0mm thickness,9-wells 2
1.5mm thickness,9-wells 2
Electrical Cables / 1
