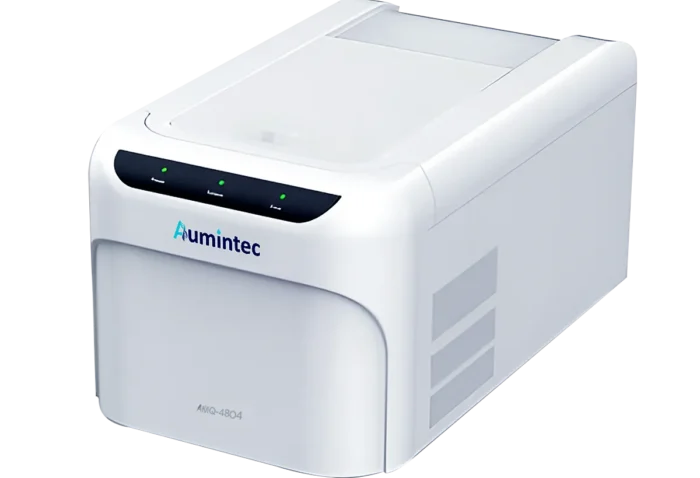

Real-time qPCR Instrument System-48well, 4 Channels

SKU: AMQ-4804

AMQ-4804

Key Features

Advanced Optical System With Fiber Optic Technology

• 4 Fluorescence Detection Channels
• Detects up to 4 targets per Reaction, Reducing Reagent Use and Sample Volume
• Enables Multiplexing; Detecting up to 4 Different Targets per Well, Reducing Reagent Consumption and Increasing Throughput

Precision Thermal Control With Six Independent Temperature Zones

• Gradient PCR Capability
• Supports Annealing Temperature Optimization across Different Wells
• Ideal for Assay Development and Optimization
• Six Independently Controlled Temperature Zones
• Allows Multiple Thermal Profiles within a Single Run
• Enables Simultaneous Processing of Different Reaction Conditions
• Fast and Uniform Heating and Cooling
• Precise Peltier Heating and Cooling System for Rapid Temperature Transitions
• Minimizes Thermal Variation Between Wells, Improving Amplification Consistency

Intelligent Software With Multiple Analysis Modes

• Multiplex Gene Expression Profiling
• Pathogen Detection and SNP Analysis
• Automated Baseline and Threshold Adjustments
• Enhances Data Accuracy and Reduces Manual Processing Errors
• Comprehensive Data Export and Integration
• Exports Results in Multiple Formats

Specification Table

PRODUCT DESCRIPTION	PCR Instrument
SAMPLE CAPACITY	48-Well, 0.2mL Block
COMPATIBLE PLATES AND TUBES	8-Well Strip Tubes, Single Tube (Transparent)
REACTION VOLUME	20-120 µL
EXCITATION SOURCE	LED
EXCITATION RANGE	475-620 nm
DETECTION METHOD	Photodiodes
DETECTION RANGE	515-670 nm
DETECTION CHANNELS	4
TEMPERATURE RANGE	4-100°C
AVERAGE HEATING AND COOLING RATE	3°C/sec and 2°C/sec
MAXIMUM HEATING AND COOLING RATE	4°C/sec and 3°C/sec
TEMPERATURE UNIFORMITY	±0.25°C
TEMPERATURE ACCURACY	±0.15°C
DYNAMIC RANGE	10 Logs of Linear Dynamic Range
OUTER DIMENSIONS (W X D X H)	47cm x 31cm x 28cm
WEIGHT	18kg
